Voronoi Diagram using

Divide-and-Conquer Paradigm


Shamos and Hoey [1] presented the first O(nlogn) deterministic algorithm for computing the Voronoi diagram in the plane that is optimal is a worst­case sense. This algorithm is significant from a theoretical standpoint not only because it was the first one but also it uses the divide-and-conquer paradigm. The 'Divide-and-Conquer' is one of the fundamental paradigms for designing efficient algorithms. In this paradigm, the original problem is recursively divided into several simpler sub-problems of roughly equal size, and the solution of the original problem obtained by merging the solutions of the sub-problems. In the divide-and-conquer approach of  Shamos and Hoey, the set of sites, S, is split up by a dividing line into subsets SL and SR of about same sizes. Then, the Voronoi diagram, Vor(SL), of  subset SL and Voronoi diagram, Vor(SR), of  subset SR are computed recursively [4].






INPUT:     The number n > 3 of sites and the list S = (s1 , s2 , . . . , sn) of the sites in increasing order of with respect of x-coordinates.
OUTPUT: Voronoi diagram Vor(S).

Step 1  Let t be the integral part of n/2 and split S into
= (s1 , s2 , . . . , st) and SR = (st+1 , st+2 , . . . , sn).

Step 2  Construct the Voronoi diagram Vor(SL) of SL recursively.

Step 3  Construct the Voronoi diagram Vor(SR) of SR recursively.

Step 4  Merge Vor(SL) and Vor(SR) into the Voronoi diagram of Vor(S) i.e., Vor(S)Vor(SL) U Vor(SR) by algorithm MERGE_VORONOI.

Step 5 Return Vor(S).


The vital part of algorithm consists of finding the split line, and merging Vor(SL) and Vor(SR), to obtain Vor(S) of original set S. If computing the split line and merging of two Voronoi diagrams could carried out in time O(n) then the overall running time is O(n log n) from the recurrence relation T(n) = 2T (n/2) + O(n).

Calculation of vertical or horizontal split lines is straightforward during recursion if the sites in S are sorted by their x and y coordinates beforehand. Any optimal sorting algorithm such as a heap sort or a merge sort [10] does this task in O(n log n) time.


Merging Voronoi Diagrams

The merge step involves computing the set of perpendicular bisector s of sets SL and SR i.e., B(SL , SR ), of all Voronoi edges of Vor(S) that separates the sites in SL from regions of sites in SR. The idea of merging based on the fact that the edges of B(SL , SR) form a single y-monotone polygonal chain. This can be proved by taking any edge b of B(SL , SR) and two sites l belongs to L and r belongs to R of two regions adjacent to b. The smaller x­coordinate of  l with respect to x­coordinate of r implies that b cannot be horizontal. Thus, stitch together the part of V(SL) to the left of  B(SL , SR) with the part of V(SR) to the right of  B(SL , SR) to get V(S). Find a starting edge at infinity, and by tracing  B(SL , SR) through V(SL) and V(SR) in order to construct the polygonal chain B(SL , SR). The time O(n) to find the starting edge at infinity by determining a line tangent to the convex hulls of SL and SR, respectively is due to Shamos and Hoey [1]. Algorithm MERGE_VORONOI represents this idea. In total MERGE_VORONOI runs in O(n) time since, steps 1 and 6 are done in O(n) time, step 2 is done in O(n) time by algorithm SUPPORT, step 3 and 5 in constant time and step 4 is repeated at most O(n) times.




INPUT:      Voronoi diagrams Vor(SL) and Vor(SR) of sets SL and SR .
OUTPUT:  Voronoi diagrams for set S = SL U SR .

Step 1  Construct the Convex hull of SL and SR.
Step 2  Find the lower common support line L(SL , SR) by Algorithm LOWER_COMMON_SUPPORT.
Step 3  wo the point at infinity downward on perpendicular bisector of sites sl belongs to SL and sR belongs to SR . i.e.,  B(SL , SR). i 0
Step 4  While L(SL , SR) is not the upper support
4.1                 i   i + 1
4.2                 Find the intersection point of B(SL, SR) with the boundary of V(sL), say aL .
4.3                 Find the intersection point of B(SL, SR)  with the boundary of V(sR), say aR .
4.4                 IF y­value of a L is smaller that y­value of aR.
                                     wi   aL
                                     sL  ← sites on the other side of the Voronoi edge containing aL .
                                    wi aR
                                    sR the site on the other side of the Voronoi edge containing aR.
Step 5  m i. Wm+1  the point at infinity upward on the perpendicular bisector of sl belongs to SL and sR belongs to SR . i.e.,  B(SL , SR).
Step 6  Add the polygonal line (w0w1 , w1w2 , . . . , w_{m}w_{m+1}), and delete from VorL the part to the right of the polygonal line and delete from Vor R from the part to the left polygonal line. Return the resultant Voronoi diagram.


Support line Computation

The algorithm MERGE_VORONOI involves convex polygons and calculation of common support line and presented in algorithm LOWER_COMMON_SUPPORT. The algorithm runs in O(n) time. In fact there is an O(log n) algorithm for finding the common support by Overmars and Leevwen [11]. But since this sub-problem is not a bottleneck of the total time complexity, following O(n) algorithm is quite enough.



INPUT :      Two Convex polygon PL and PR such that PL is completely left of PR .
  A pair consisting of vertex u belongs to PL and v belongs to PR  such that L(u, v) forms the lower common support of polygons PL  and PR.

Step 1    Find the vertex u belongs to PL  with the largest x coordinate and the  v belongs to PR  with the smallest x coordinate.
Step 2    Repeat sub­steps 2.1 and 2.2 Alternately.

2.1      While vertex next[u] is lower than L(u, v)
                    Repeat u next[u].
2.2      While vertex next[v] is lower than L(u, v)
                    Repeat v next[v].

Step 3    Return L(u, v).



The above description of an algorithm VORONOI_DIAGRAM leads to the following conclusion. In the worst case, O(n log n) time and linear space is requires to construct the Voronoi diagram of n sites in the plane using the divide-and-conquer paradigm. Note that both bounds are optimal. There are many variation to this classical divide-and-conquer approach presented by Shamos and Hoey [1]. For example, Guibas and Stolfi [2] provide an implementation that utilize the quad­edge data structure. Dwyer's implementation [5] apply vertical and horizontal split lines in turn. Katajainen and Koppinen's [6] merge square buckets in a quad­tree order [7, 8]. It is worthy to note that divide-and-conquer algorithms are also excellent candidates for efficient parallelization.

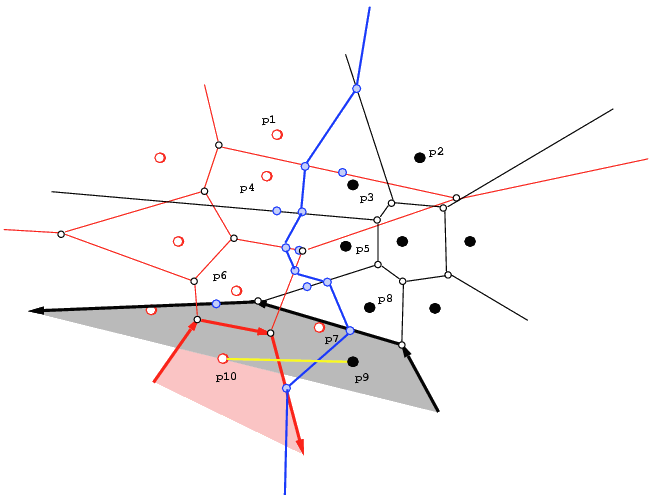

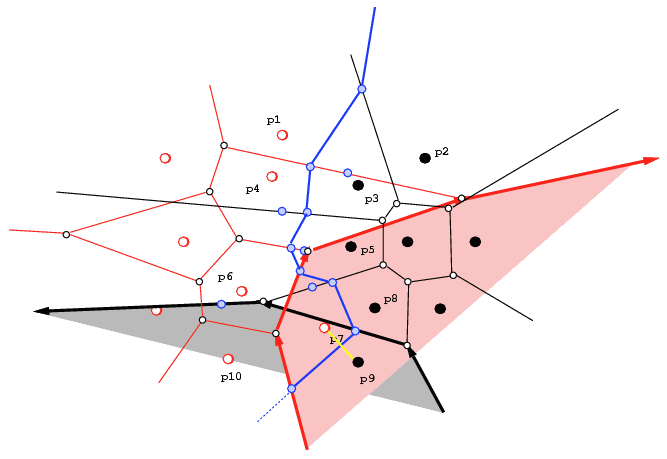

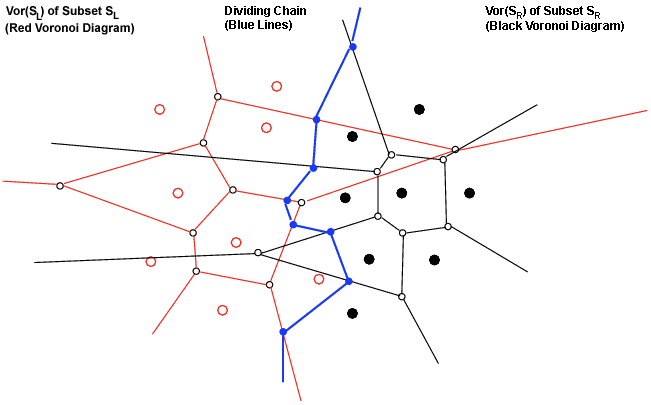

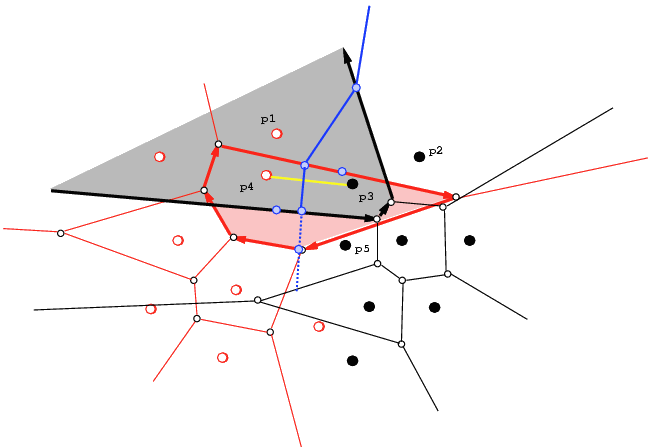

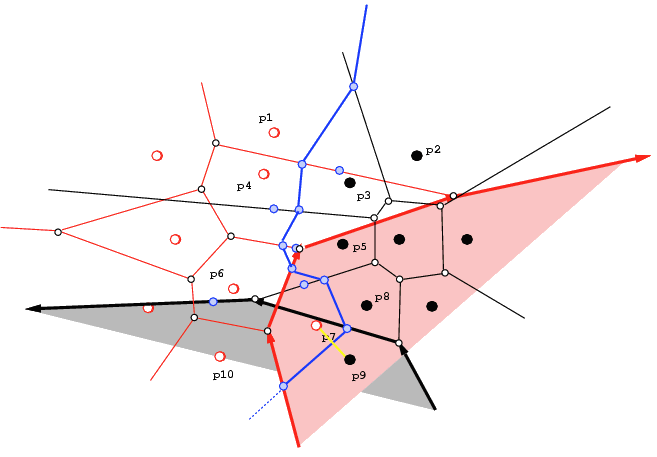

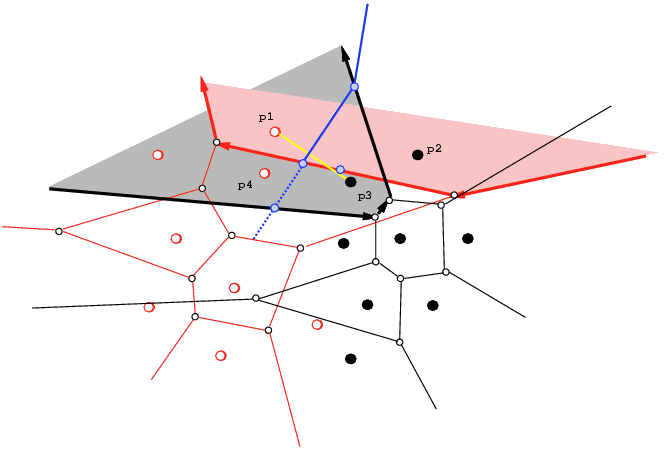

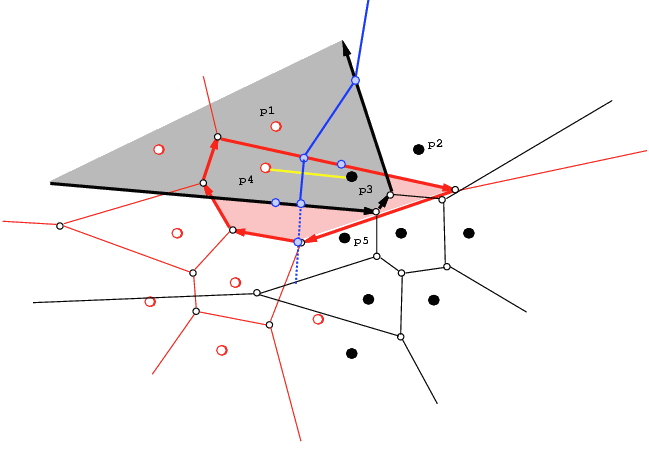

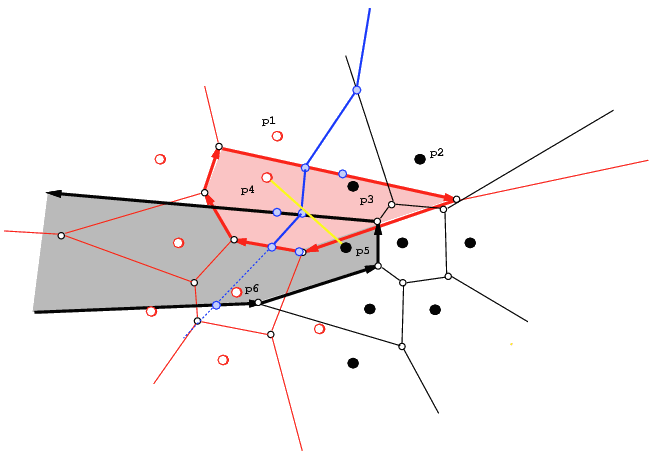

Construction of Dividing Chain

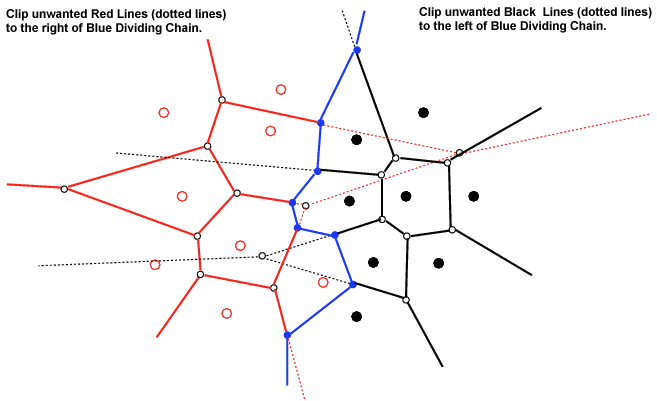

The most important part in the game of Voronoi construction is to construct the dividing chain (polygonal line, polygonal chain, split line, and so on). So, lets construct dividing chain step-by-step.

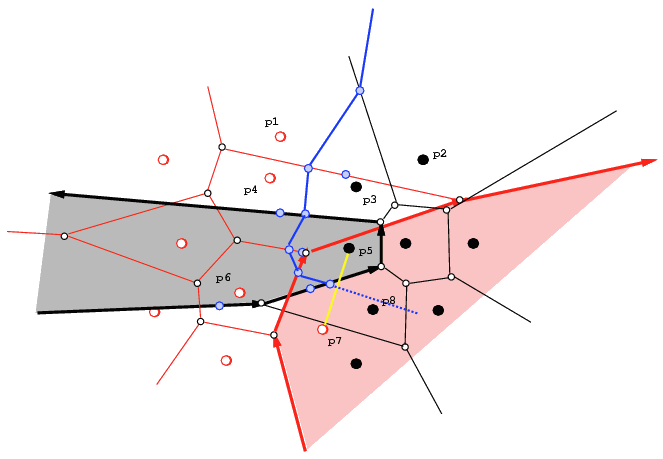

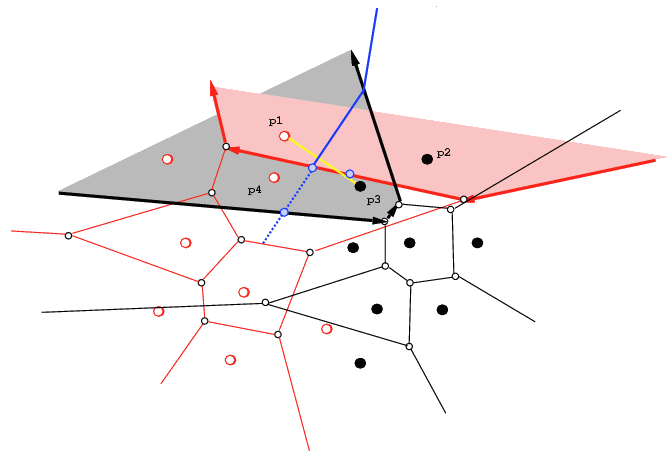

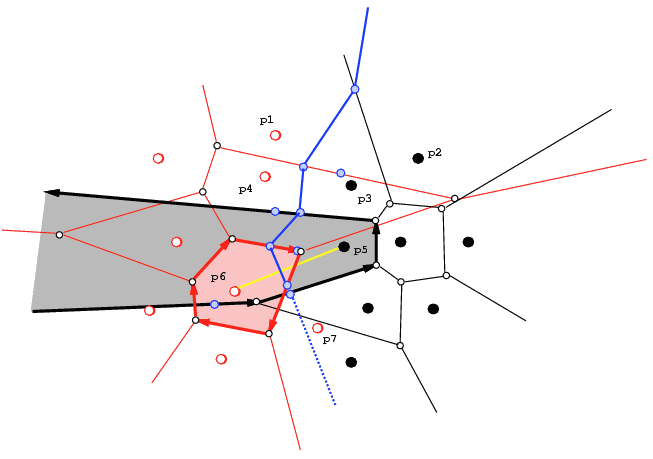

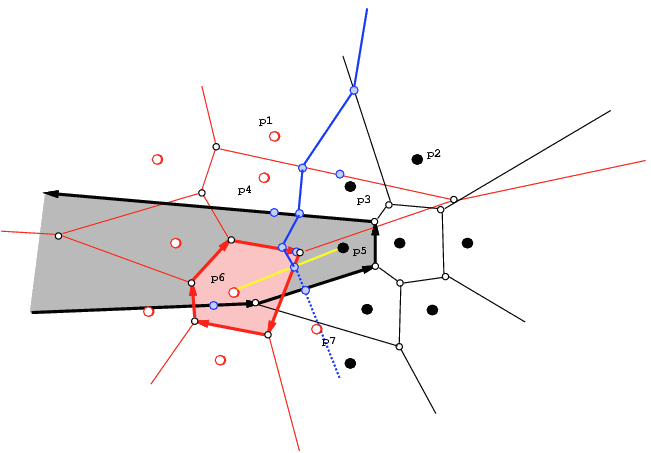

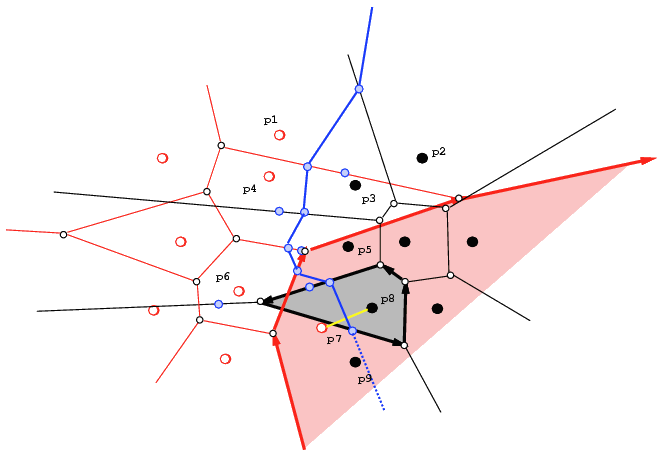

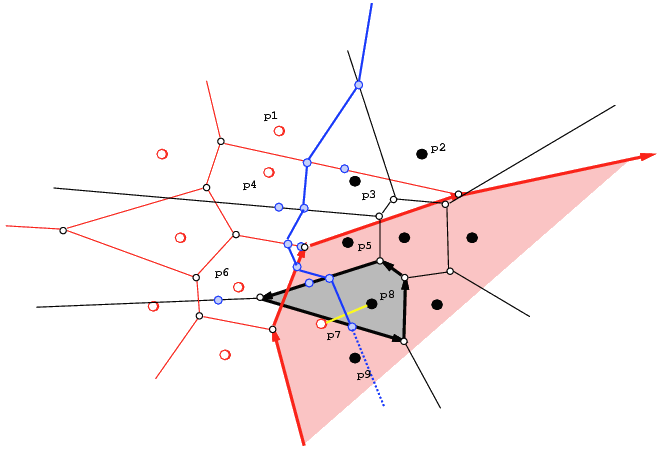

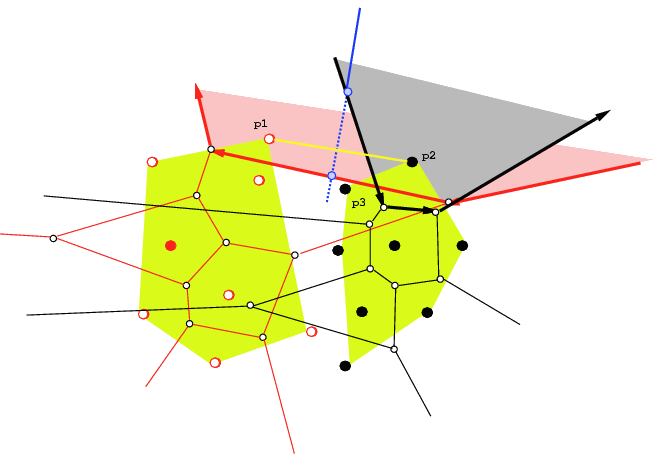

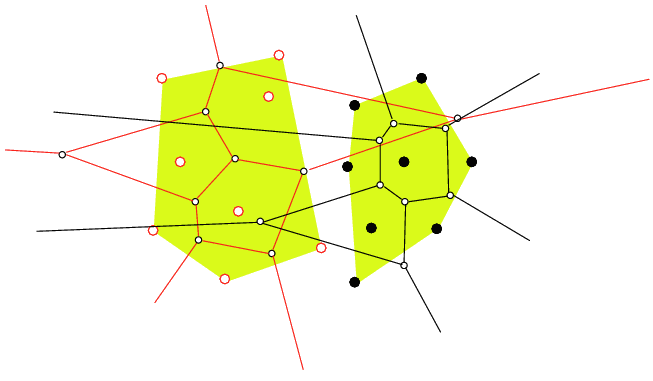

Step 1

Step 2

Step 3

Step 4


Step 5


Step 6


Step 7


Step 8


Step 9

Step 10


Step 11

Step 12


Step 13

Step 14


Step 15

Step 16

Step 17



Divide-and-Conquer Voronoi Diagram Applet

If you see no Applet here...
... Enable your browser with JAVA!
