The solaris-2 Operating Systems supports:

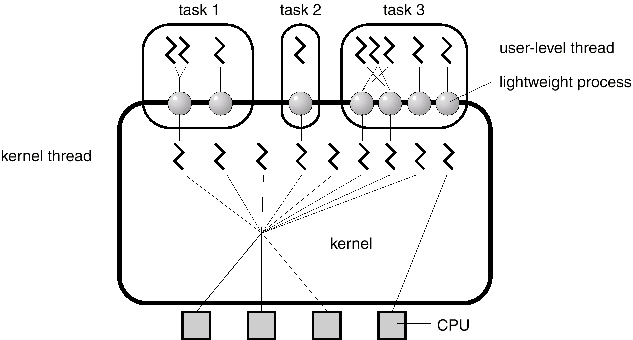

The entire thread system in Solaris is depicted in following figure.
Resource needs of User-level Threads
The lightweight processes (LWPs) are located between the user-level threads and kernel-level threads. These LWPs serve as a "Virtual CPUs" where user-threads can run. Each task contains at least one LWp.
The user-level threads are multiplexed on the LWPs of the process.
Resource needs of LWP
An LWP contains a process control block (PCB) with register data, accounting information and memory information. Therefore, switching between LWPs requires quite a bit of work and LWPs are relatively slow as compared to user-level threads.
The standard kernel-level threads execute all operations within the kernel. There is a kernel-level thread for each LWP and there are some threads that run only on the kernels behalf and have associated LWP. For example, a thread to service disk requests. By request, a kernel-level thread can be pinned to a processor (CPU). See the rightmost thread in figure. The kernel-level threads are scheduled by the kernel's scheduler and user-level threads blocks.
SEE the diagram in NOTES
In modern solaris-2 a task no longer must block just because a kernel-level threads blocks, the processor (CPU) is free to run another thread.
Resource needs of Kernel-level Thread
A kernel thread has only small data structure and stack. Switching between kernel threads does not require changing memory access information and therefore, kernel-level threads are relating fast and efficient.
