Jupyter Notebooks

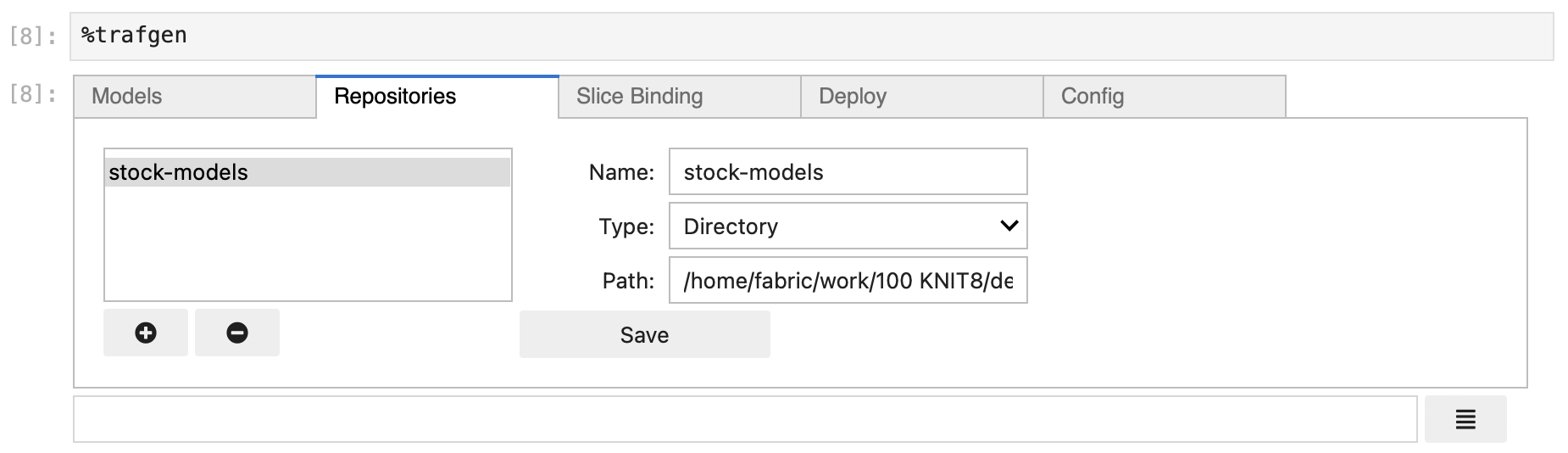

Jupyter Notebook cells can be executed to load the traffic models on the sample experiment topology. The configuration of the modeling parameters is displayed in a number of tabs, as shown below.
The data in tabs populate as per user entries that specify the repositories, slice bindings, and then finally the models are loaded to the specific network of the user in Deploy tab. The last tab in the view, Config, has some information for the user to keep track of the deployment stages such as logs and destination directory information.
trafgen Application
The application loads a Jupyter Lab Notebook user interface that provides
the interactive configuration capabilities to the experimenter. User’s
slice information is retrieved using fablib so that there is a seamless
integration of traffic deployment on an experiment network topology. Model
bundle files provide the requisite information displayed on this user
interface in order to deploy the experimentation.
The application utilizes Jupyter widgets to provide the interactive menu options, dropdown choices, entry boxes, and setup buttons that are commonly found in browser applications. For more information, please see Jupyter Widgets
